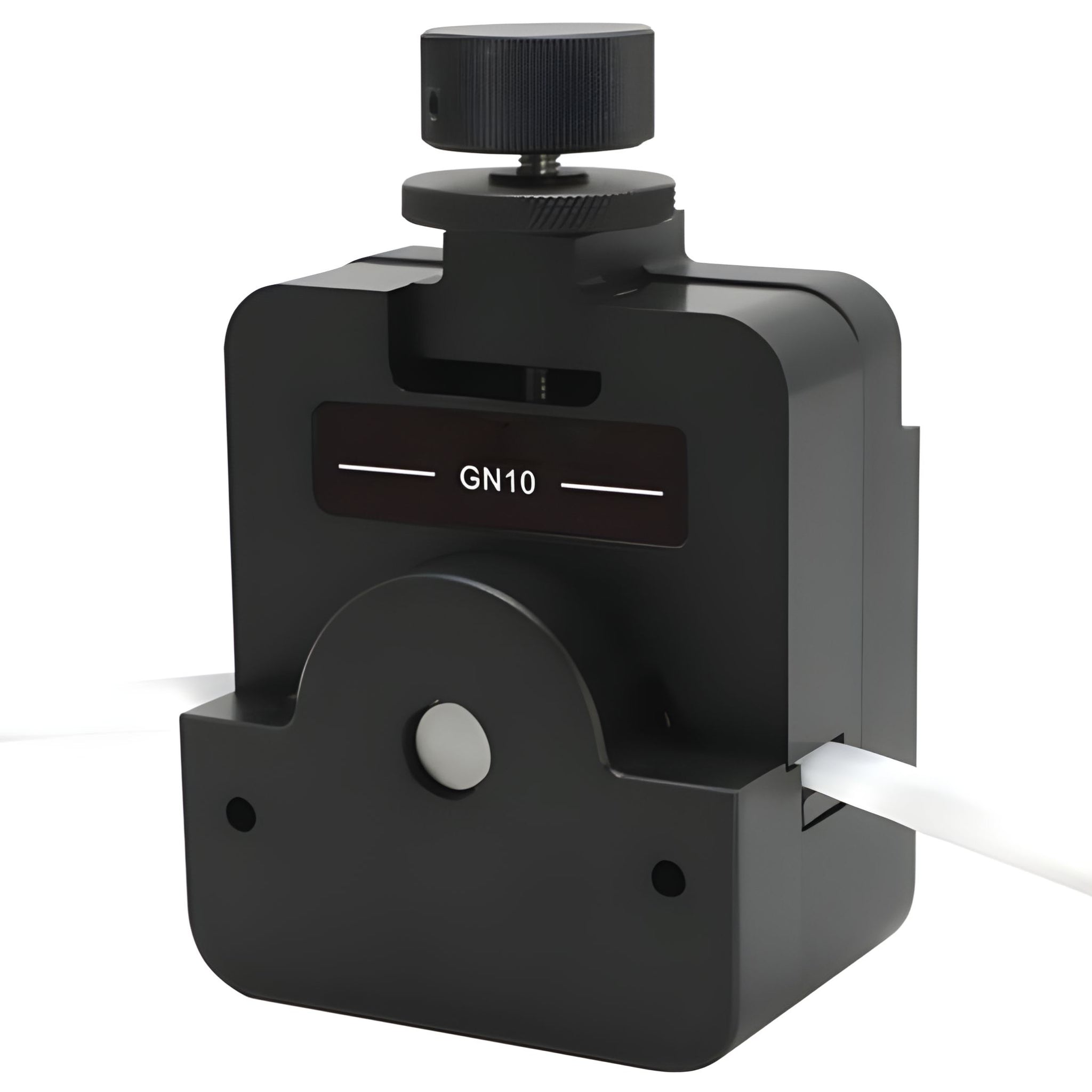

GN10 High-Pressure Corrosion-Resistant Peristaltic Pump Head
Features
- Compatible with PTFE tubing: Offers excellent chemical resistance, making it suitable for handling strong acids, strong alkalis, and various organic solvents. It is particularly suitable for transferring small-volume liquids that standard peristaltic pumps cannot handle.
- High-performance materials: Constructed from aluminum alloy and POM, ensuring exceptional mechanical properties.

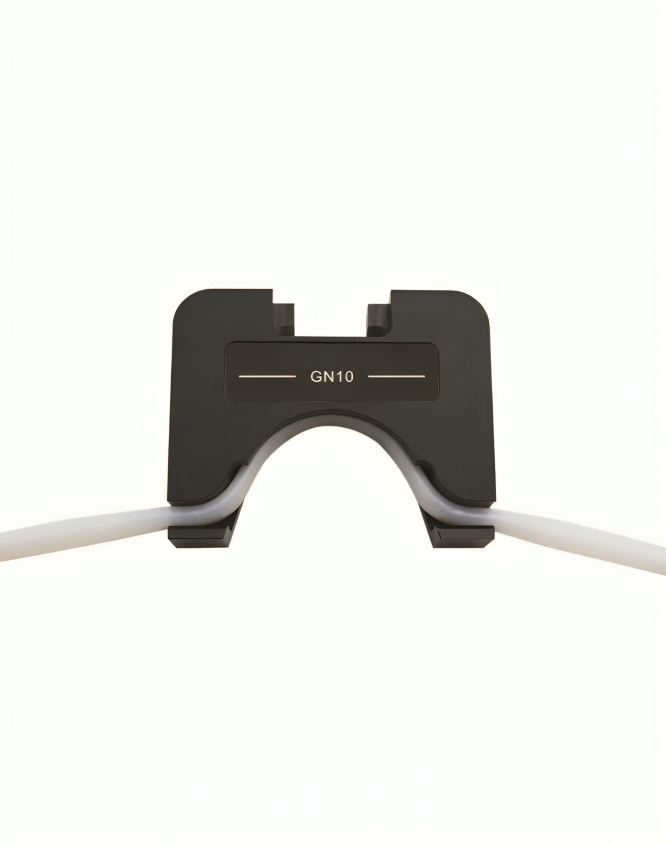

- Adjustable and secure design: Features an adjustable tube compression gap with a locking mechanism, allowing it to withstand pressures of up to 0.68 MPa.
- User-friendly and efficient: The tubing is easy to install, the operation is quiet, and the compact, aesthetically pleasing design enhances usability.
Specifications
| Category | Technical Parameters |
|---|---|
| Flow Rate Range | ≤78 ml/min |
| Speed Range | <300 rpm |

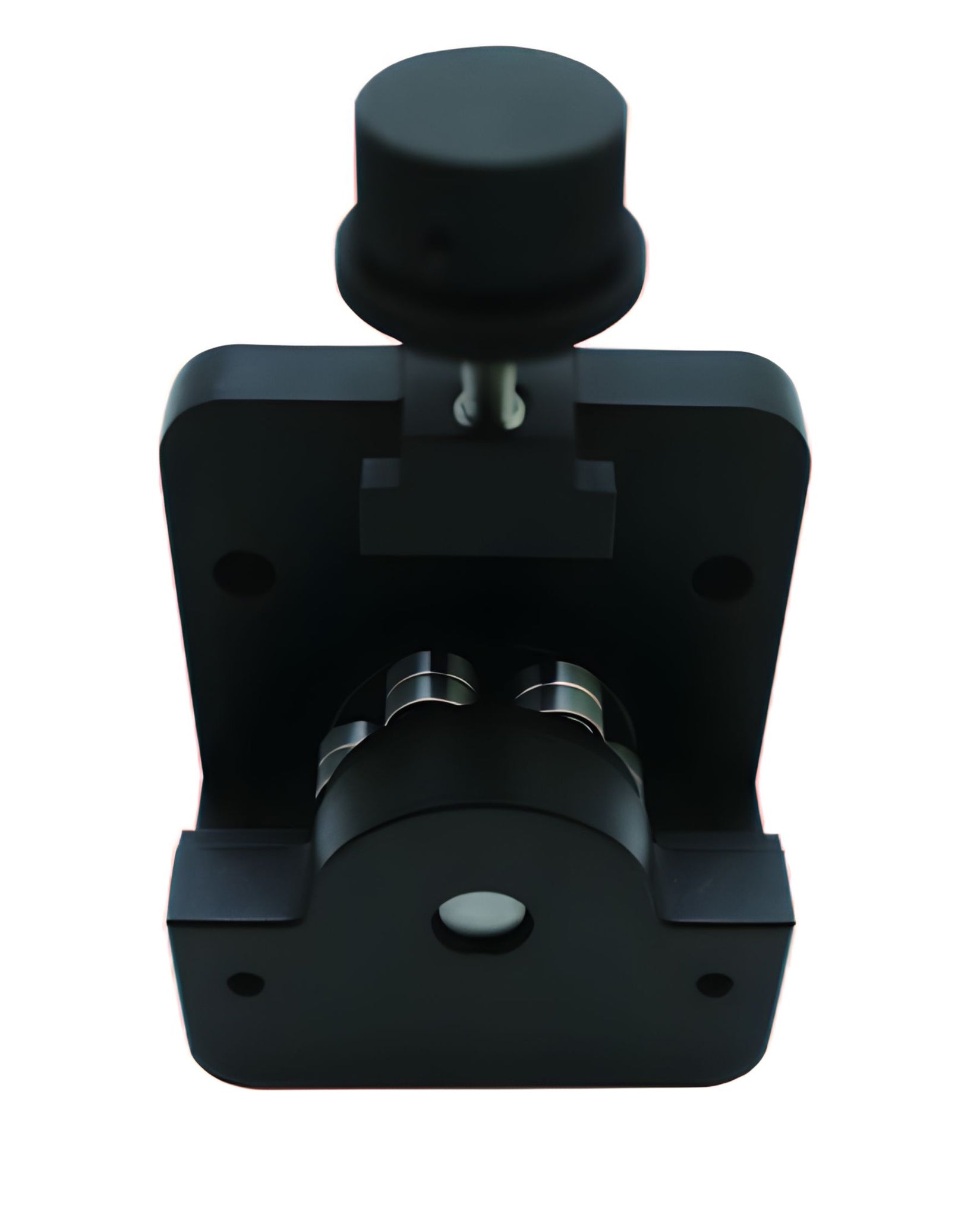

| Number of Rollers | 6 |
| Number of Channels | 1 |
| Operating Environment | Temperature: 0~40°C, Humidity: <80% |
| Tube Compression Structure | Adjustable tube compression gap |
| Dimensions | 83 × 140 × 65 mm |
| Weight | 0.92 kg |
| Reference Flow Rate | 65 ml/min |
| Tubing Specifications | 2.5x4 mm / 4x6 mm (PTFE) |
| Suction Lift | Not exceeding 2 meters |
| Transfer Pressure | ≤0.68 MPa |
Flow Parameters
| Tubing Material: PTFE | Wall Thickness (mm) | Inner Diameter (mm) | Milliliters per Revolution (ml/rev) | Milliliters per Minute (100 rpm) | Milliliters per Minute (300 rpm) |
|---|---|---|---|---|---|
| PTFE Tubing | 0.76 | 2.5 | 0.069 | 7 | 21 |
| 0.76 | 4 | 0.26 | 26 | 78 |
Note: The flow rate data above is based on tests using pure water under normal temperature and pressure conditions. Actual performance may vary depending on factors such as pressure and medium. The data is for reference only.
Dimensions (mm)
