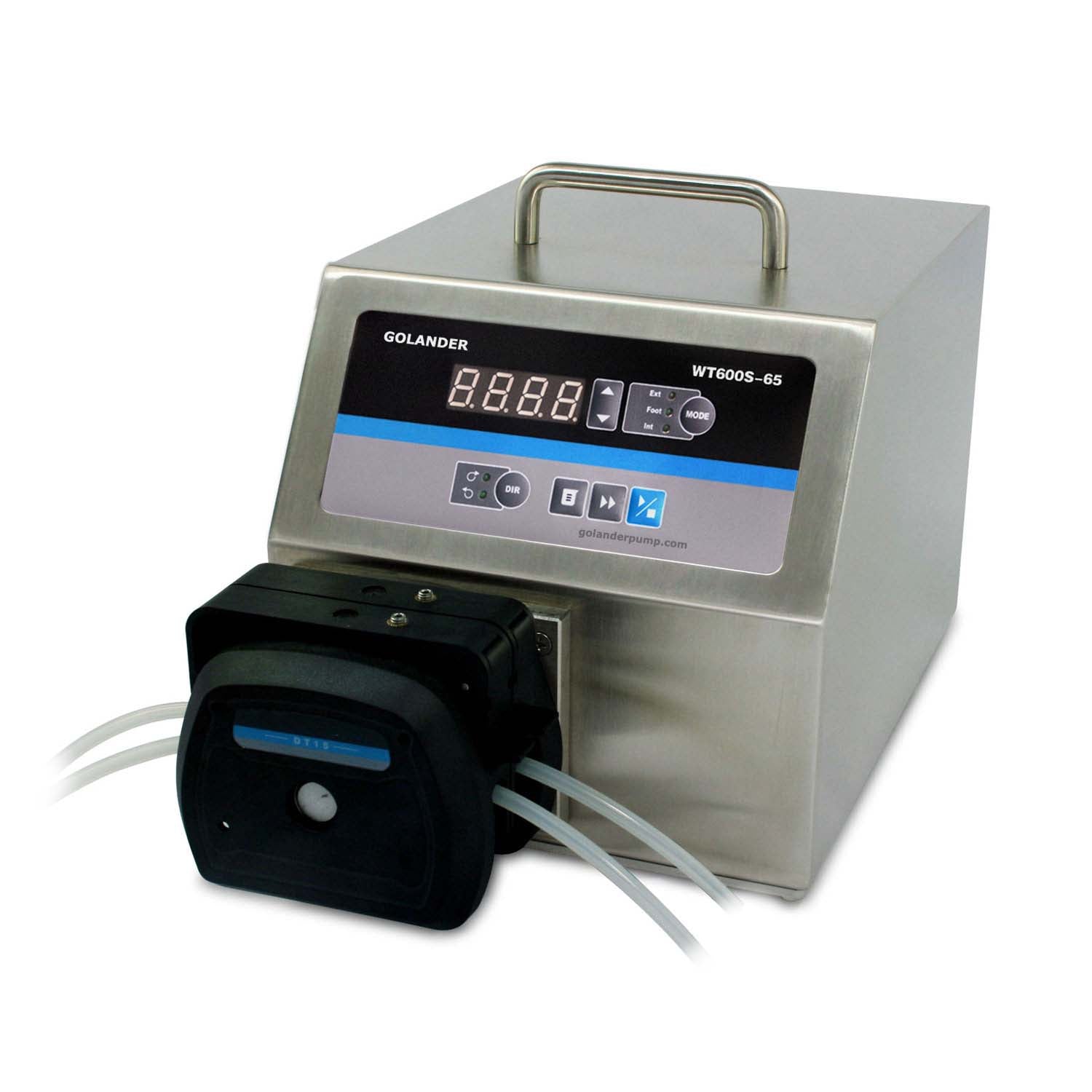

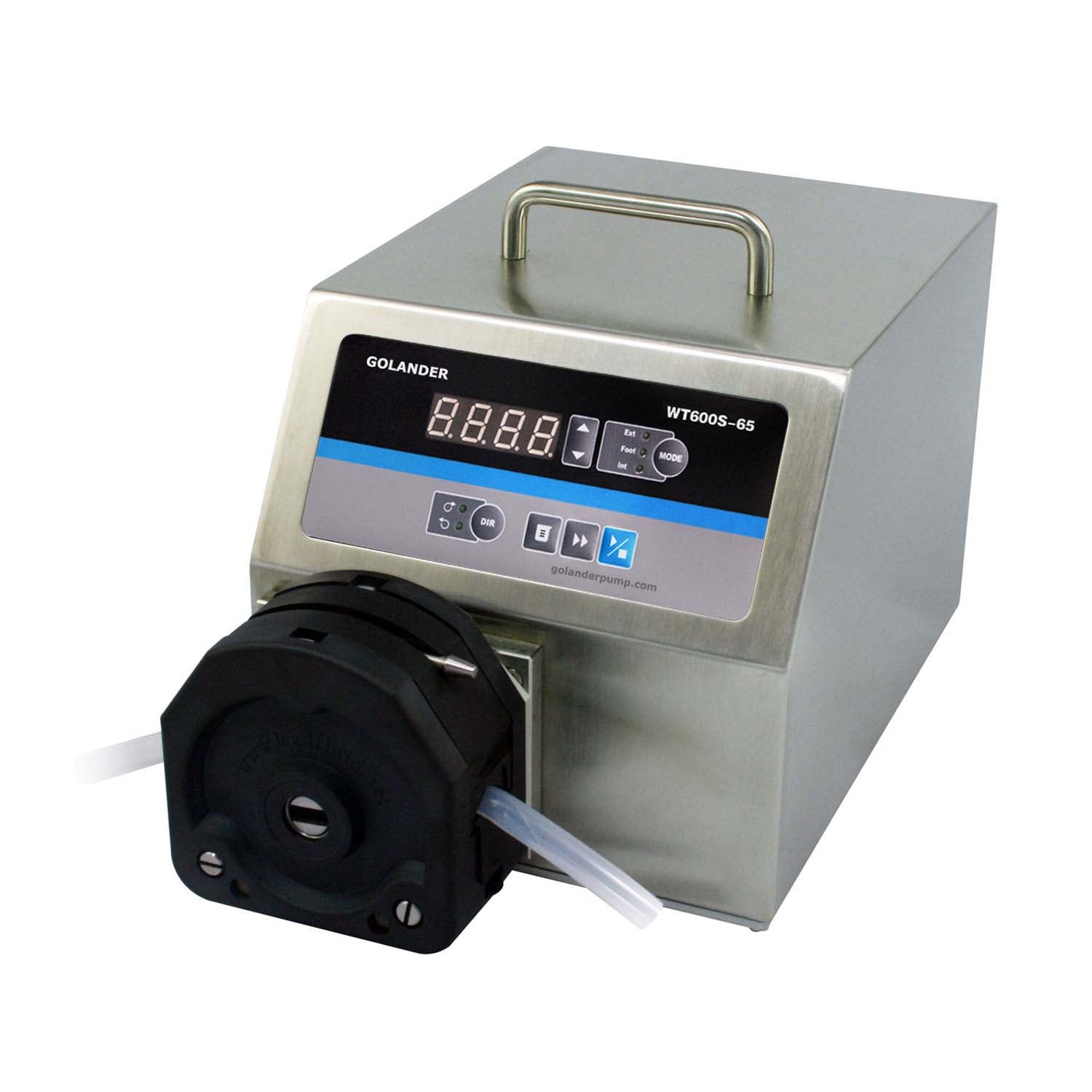

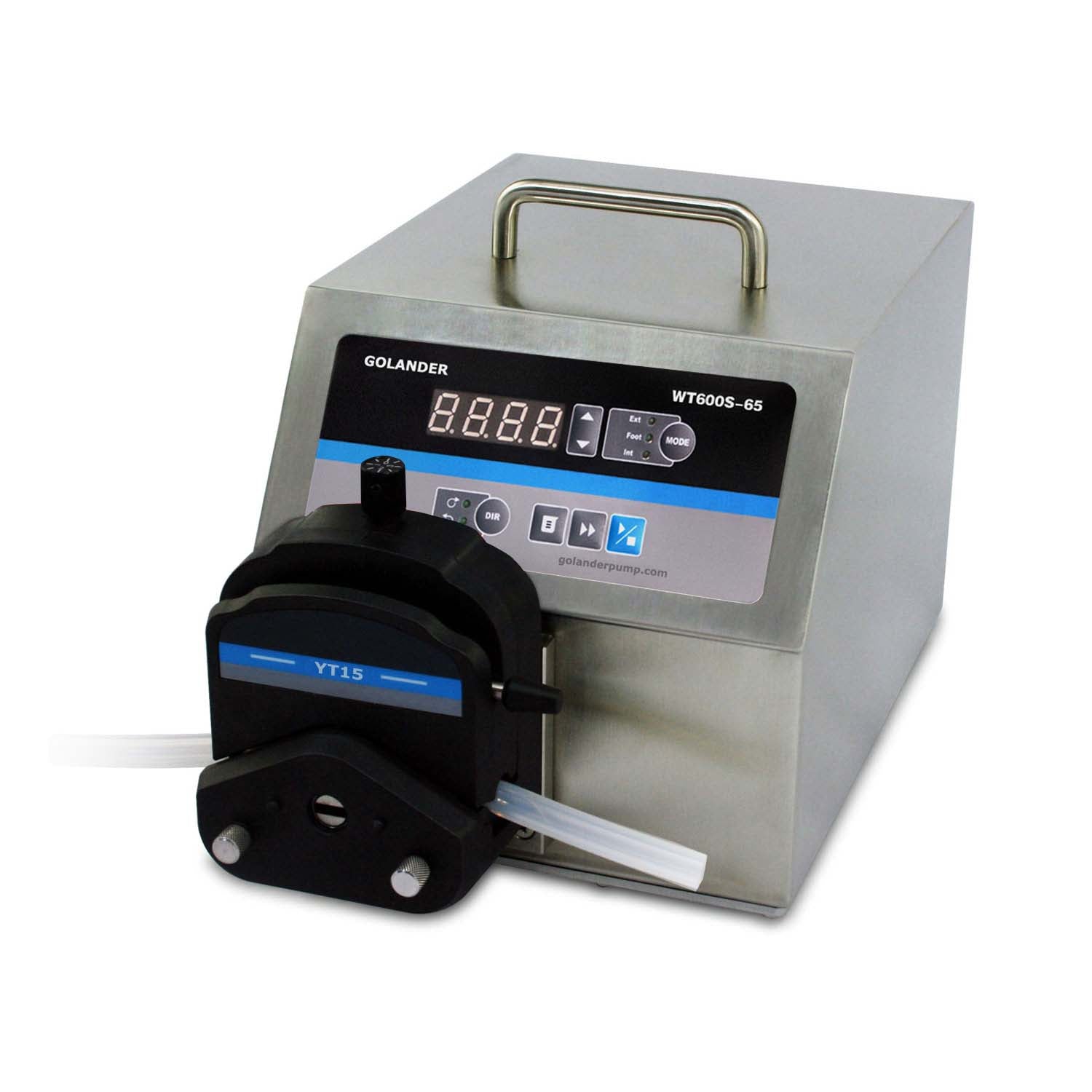

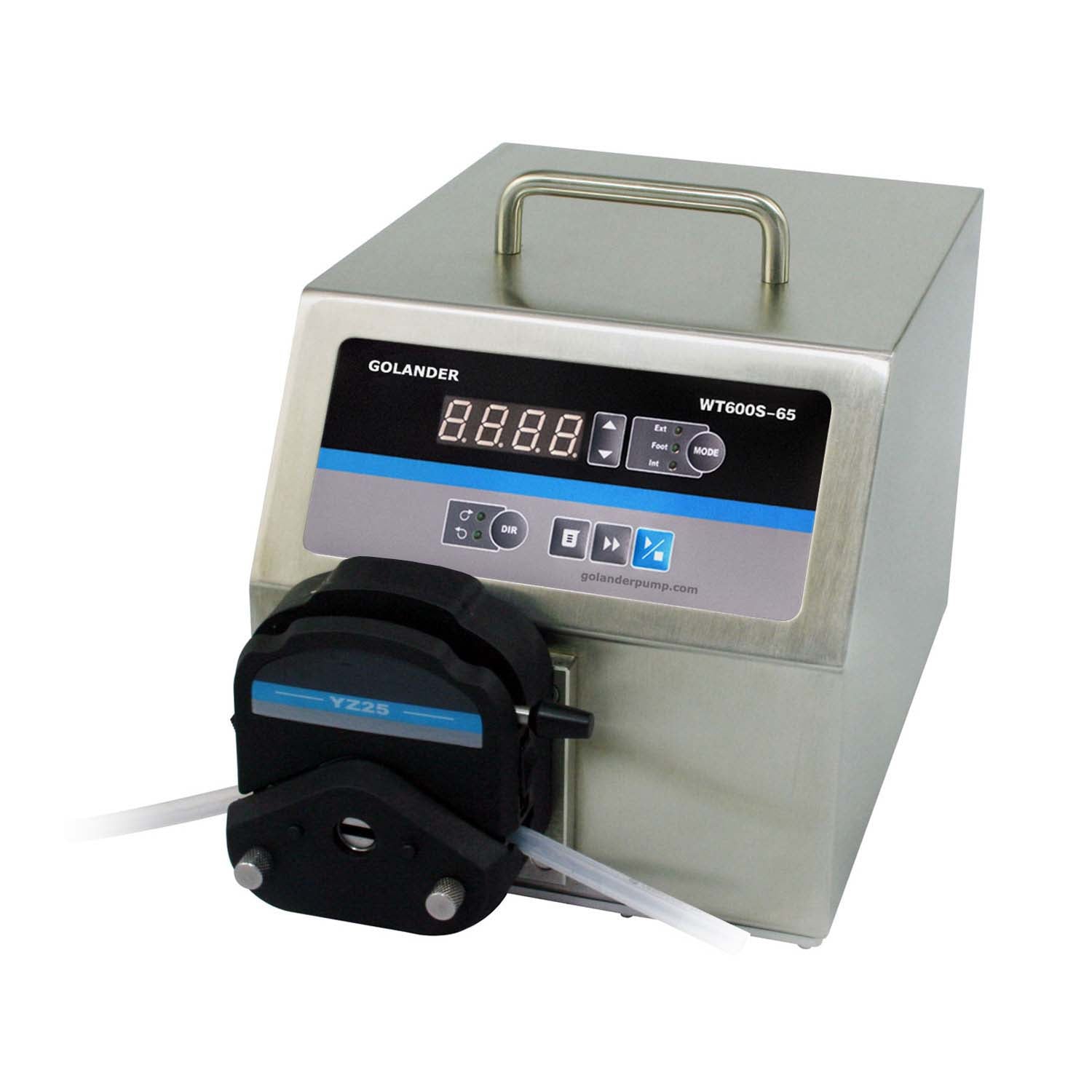

WT600S-65 Variable-Speed Peristaltic Pump
The IP65 waterproof grade WT600S-65 variable speed peristaltic pump provides a flow rate from 3 to 6000mL/min. The large torque DC brushless motor drive requires no maintenance and can drive up to four pump heads. It has basic functions such as reversible direction, start/stop, full speed (for fast cleaning), and adjustable speed. The basic dispensing function can easily repeat liquid dispensing over time. With the MODBUS RS485 interface, the pump is easy to be controlled by external devices, such as computers, human-machine interfaces or PLC.
Functions and Features
- Four digits LED indicator displays working speed.
- The LED indicator shows the working mode: internal control, external control or footswitch.
- Membrane keypad operation.
- Reversible direction, start/stop, adjust speed and full speed, state memory (power-off memory).
- Easy dispensing functions, it can repeat timing quantitative fluid dispensing.
- Can drive multi-channels and various types of pump heads.
- Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and organic solvents.
- The circuit board with conformal coating makes it dust-proof and moisture-proof.
- Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
- External voltage controls start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analogue adjusts the rotate speed.
- RS485 interface, MODBUS protocol is available, easy to connect with external devices.
- Optional footswitch or timer for dispensing fluid.
Specifications
- Flow range: 3-6000 mL/min
- Speed range: 30-600 rpm
- Speed resolution: 1 rpm
- Flow accuracy: ＜3%
- Power supply: AC100-240V, 50Hz/60Hz
- Power consumption: <200W
- External on/off control voltage: 5V, 12V (standard), 24V (optional)
- External control analog signal: 0-5V (standard), 0-10V, 4-20mA (optional)
- Communication interface: RS485 MODBUS
- Operating condition: 0-40 °C
- Relative humidity: <80%
- IP grade: IP65
- Dimensions (L x W x H): 337 x 199 x 235 mm
- Weight: 7.1kg
Dimensions (mm)
WT600S-65 Compatible Pump Heads, Tubing, and Flow Parameters
| Drive | Pump Head | Tubing Size | Flow Rate Per Channel* |
| WT600S-65 30-600 rpm |

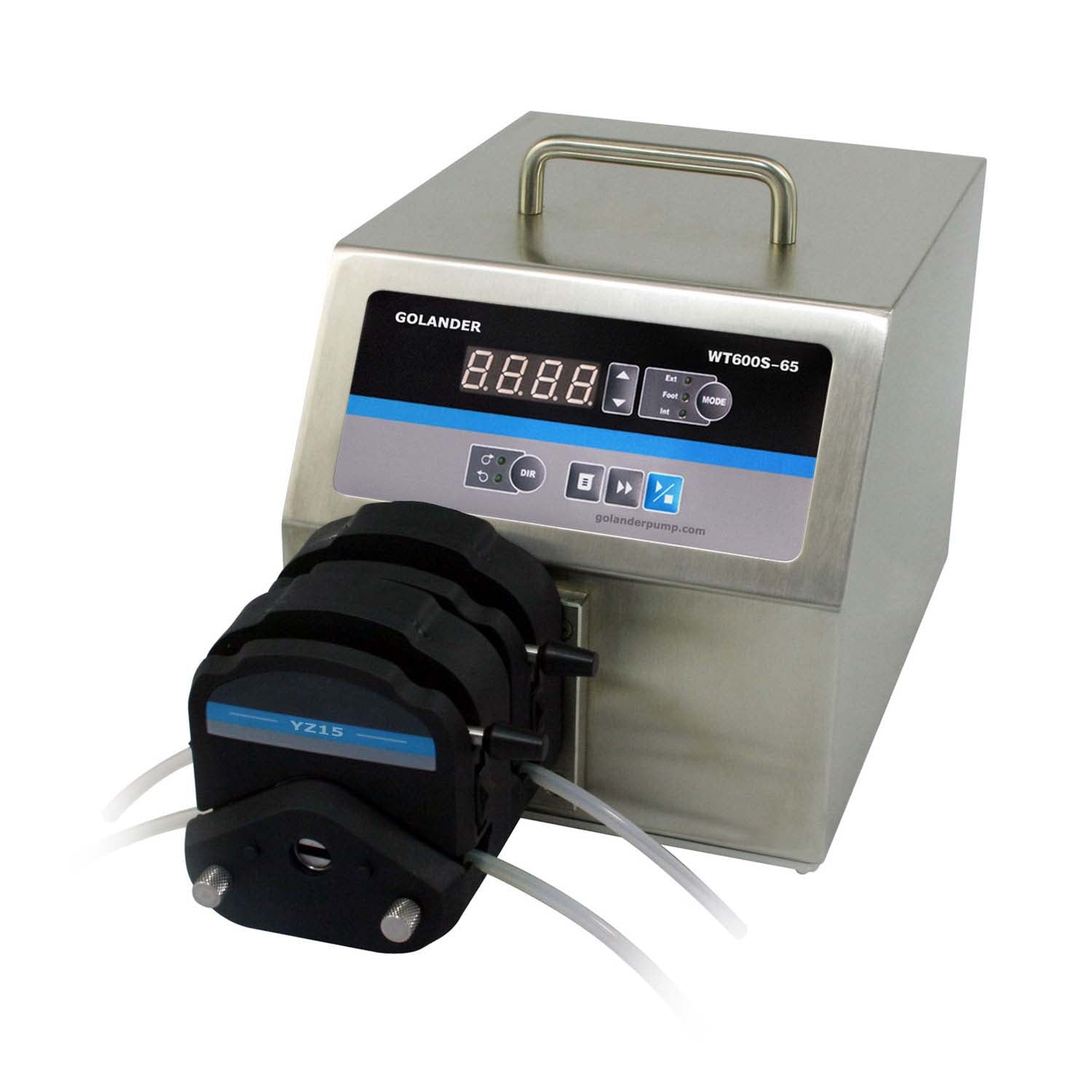

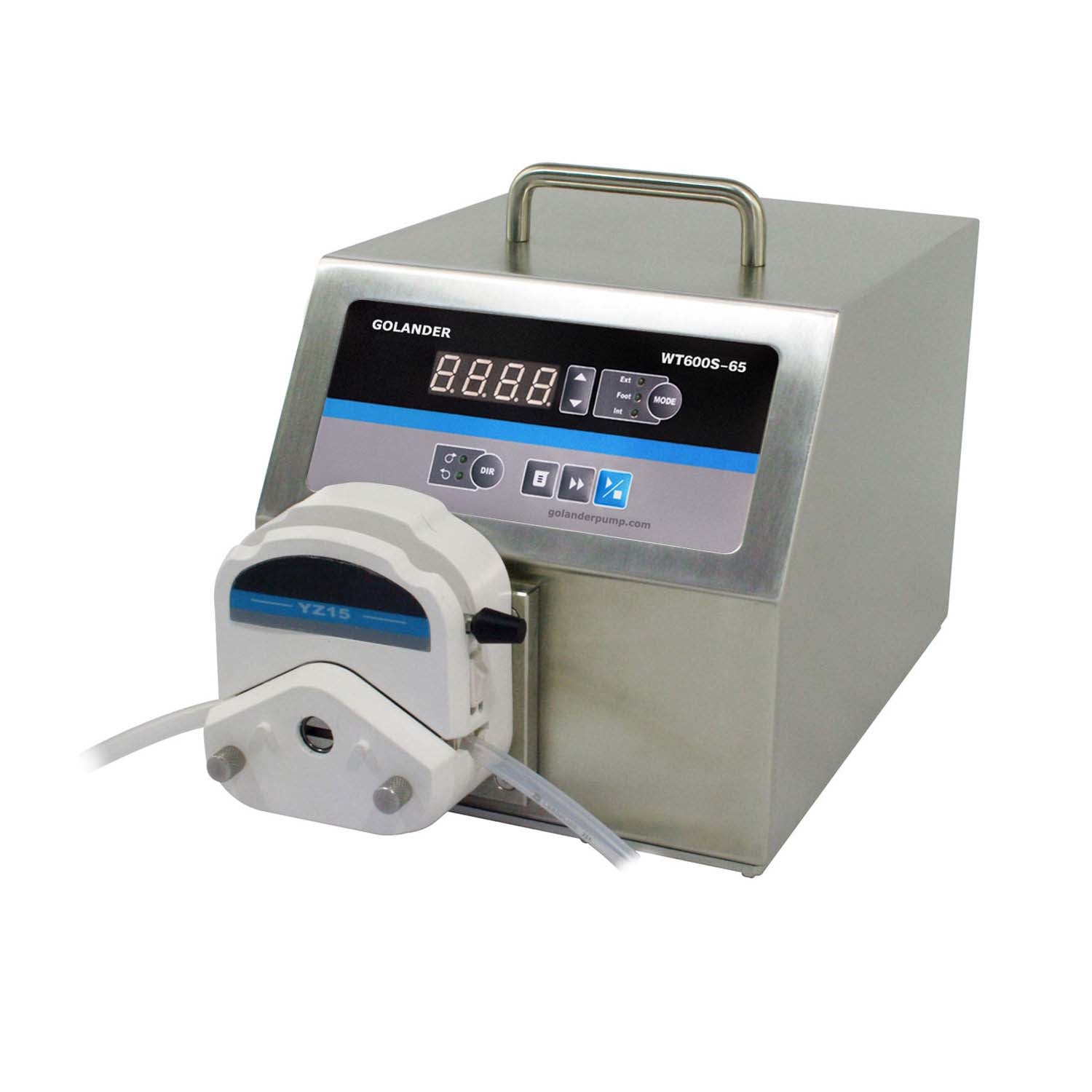

YZ15 (3 rollers, 1 channel) 2xYZ15 (3 rollers, 2 channels) |
13# (ID 0.8mm, Wall 1.6mm) | 0.005-30 ml/min |
| 14# (ID 1.6mm, Wall 1.6mm) | 0.02-120 ml/min | ||
| 19# (ID 2.4mm, Wall 1.6mm) | 0.05-300 ml/min | ||
| 16# (ID 3.2mm, Wall 1.6mm) | 0.08-480 ml/min | ||
| 25# (ID 4.8mm, Wall 1.6mm) | 0.19-1140 ml/min | ||
| 17# (ID 6.4mm, Wall 1.6mm) | 0.3-1800 ml/min | ||
| 18# (ID 7.9mm, Wall 1.6mm) | 0.43-2562 ml/min | ||
|

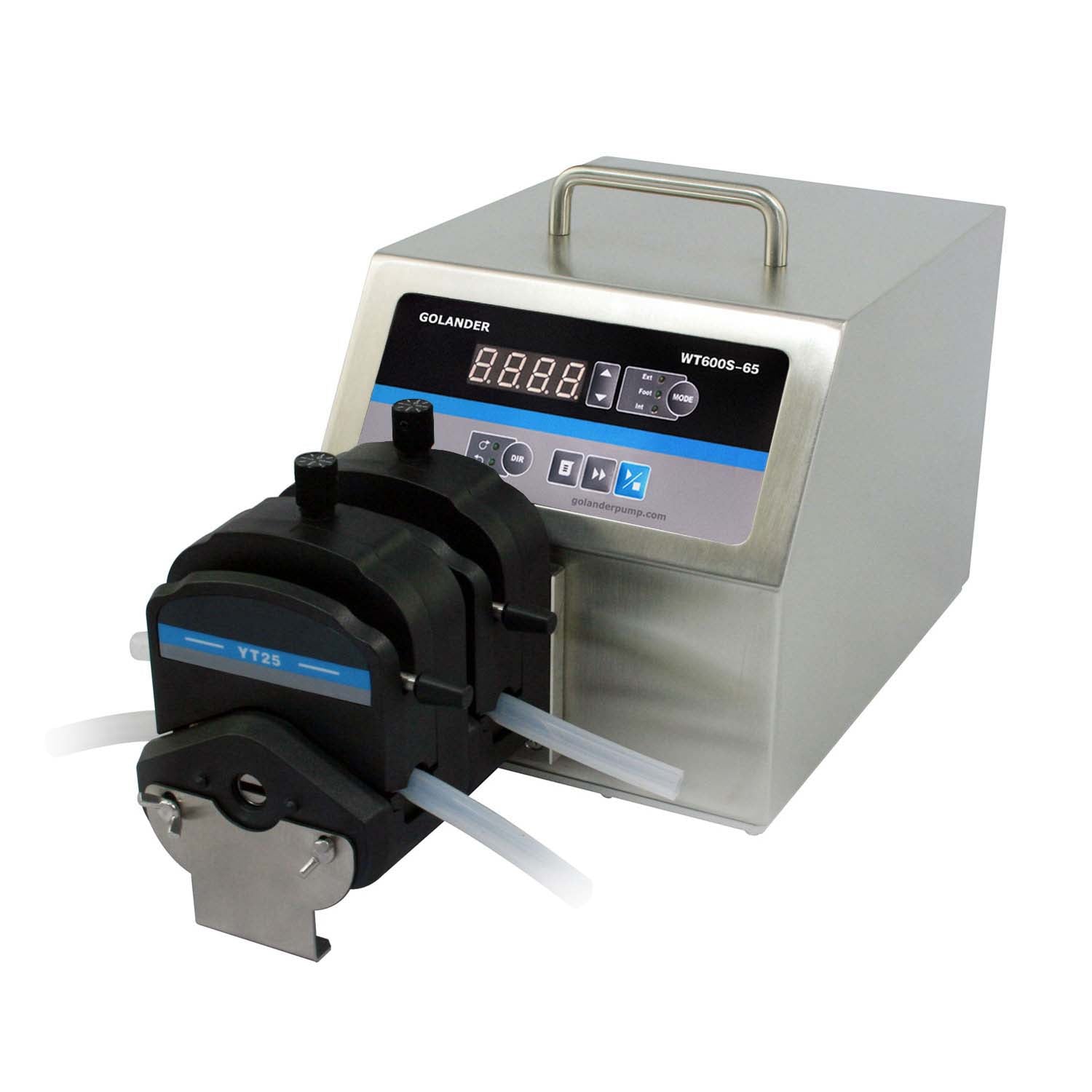

YT25 2xYT25 |
15# (ID 4.8mm, Wall 2.4mm) | 0.18-1098 ml/min | |
| 24# (ID 6.4mm, Wall 2.4mm) | 0.31-1860 ml/min | ||
| 35# (ID 7.9mm, Wall 2.4mm) | 0.39-2340 ml/min | ||
| 36# (ID 9.6mm, Wall 2.4mm) | 0.50-3000 ml/min |
*The above flow rate data is obtained from tests with pure water at room temperature and pressure and is for reference only. Actual flow rates may vary due to pressure, media characteristics, and other relevant factors.
