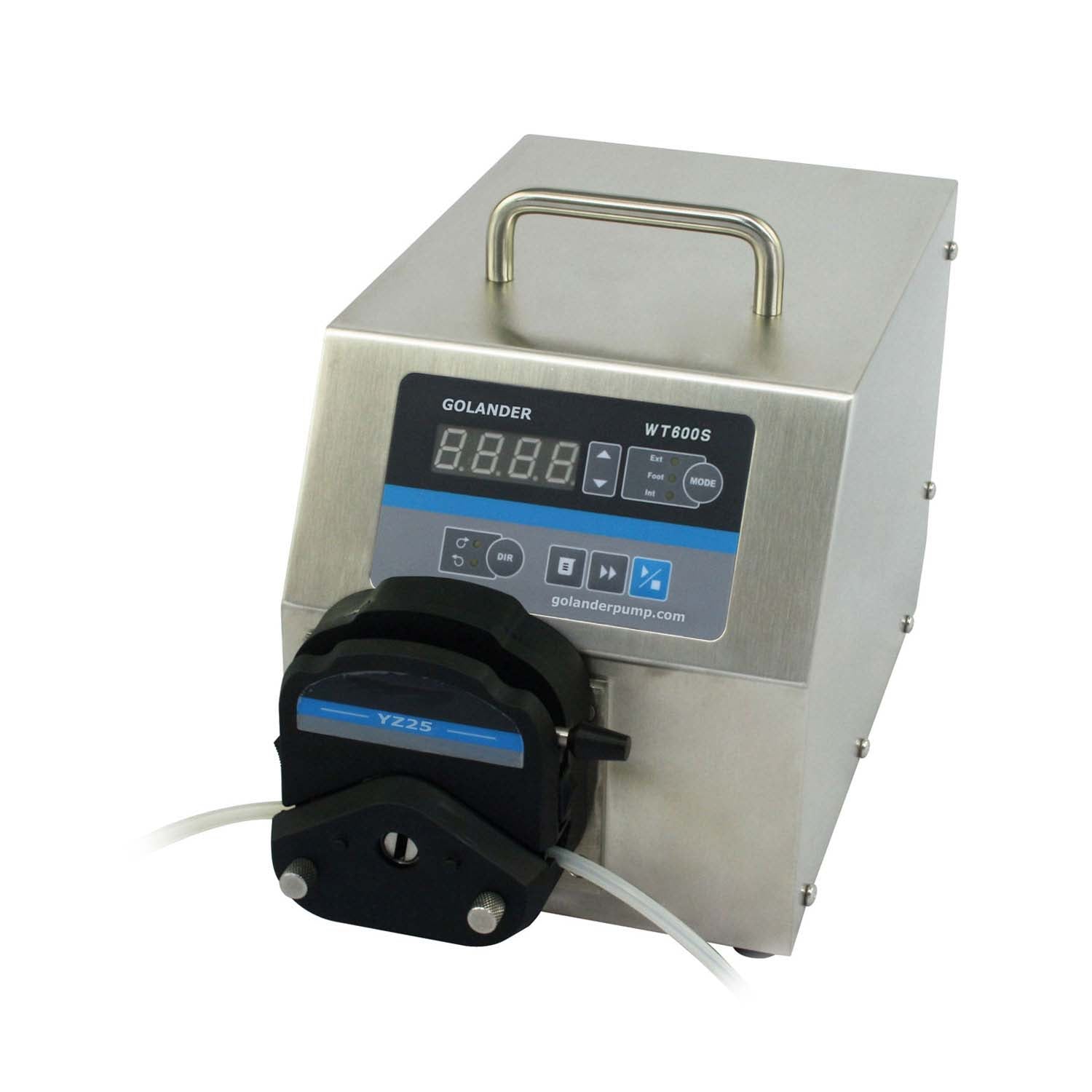

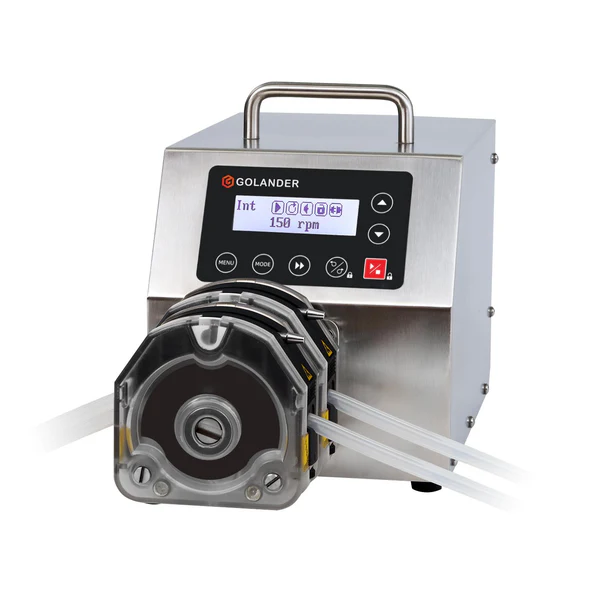

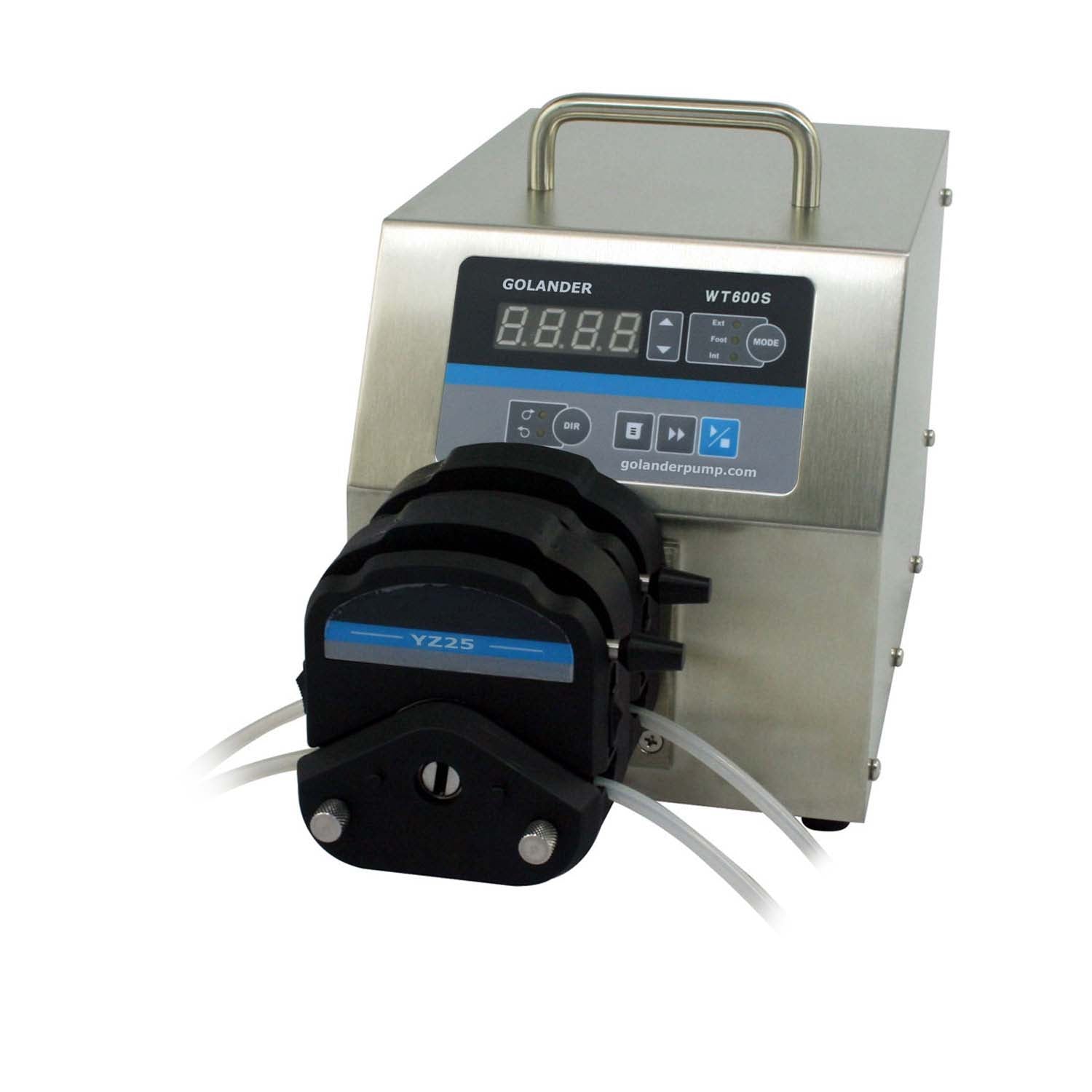

WT600S Variable-Speed Peristaltic Pump
The WT600S variable speed peristaltic pump provides a flow rate from 0.31 to 6600mL/min. The large torque DC brushless motor drive requires no maintenance. Its basic functions include reversible direction, start/stop, full speed (for fast cleaning), and adjustable speed. Easy dispensing mode is available. With the MODBUS RS485 interface, the pump can easily be controlled by external devices, such as computers, human-machine interfaces, or PLCs.
Functions and Features
- LCD displays rotating speed and operating mode.
- Membrane keypad.
- Reversible direction, start/stop control and adjustable speed.
- Time dispense mode: automatically dispense by setting the duration for each dose, lag time between doses and the number of cycles.
- Work with multi-channel and various types of pump heads.
- Stainless steel housing, easy to clean, excellent resistance to corrosion of acid, alkali, sodium and organic solvents.
- The circuit board with conformal coating makes it dust- and moisture-proof.
- Excellent anti-interference feature, wide input voltage range, acceptable for complex power environments.
- External high–low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analogue adjusts the rotation speed.
- RS485 interface, supporting the MODBUS protocol, connects easily with external devices.
- Optional footswitch or timer for dispensing fluid.
Specifications
- Flow range: 0.31-6600 mL/min
- Speed range: 0.1-600 rpm
- Speed resolution: 1 rpm
- Speed accuracy: <0.5%
- Power supply: AC100-240V, 50Hz/60Hz
- Power consumption: <200W
- External on/off control voltage: 5V, 12V (standard), 24V (optional); External control analog signal: 0-5V (standard), 0-10V, 4-20mA (optional)
- Communication interface: RS485 MODBUS
- Operating condition: 0-40 °C
- Relative humidity: <80%
- IP grade: IP31
- Dimensions (L x W x H): 318mm x 185mm x 230mm
- Weight: 5.9 kg
Dimensions (mm)
WT600S Compatible Pump Heads and Tubing, Flow Parameters
| Drive type | Pump Head | Tubing size (mm) | Flow rate per channel (mL/min) |

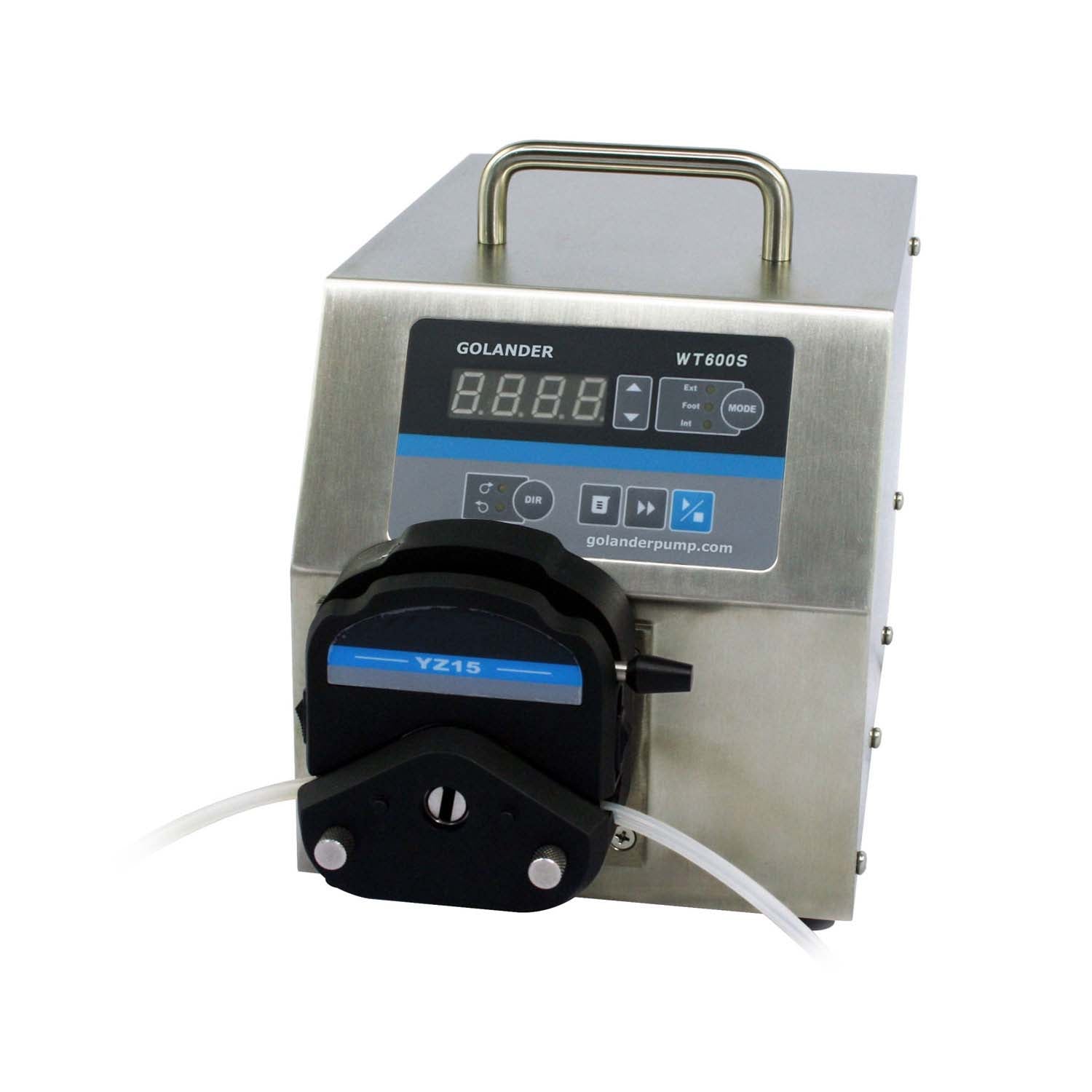

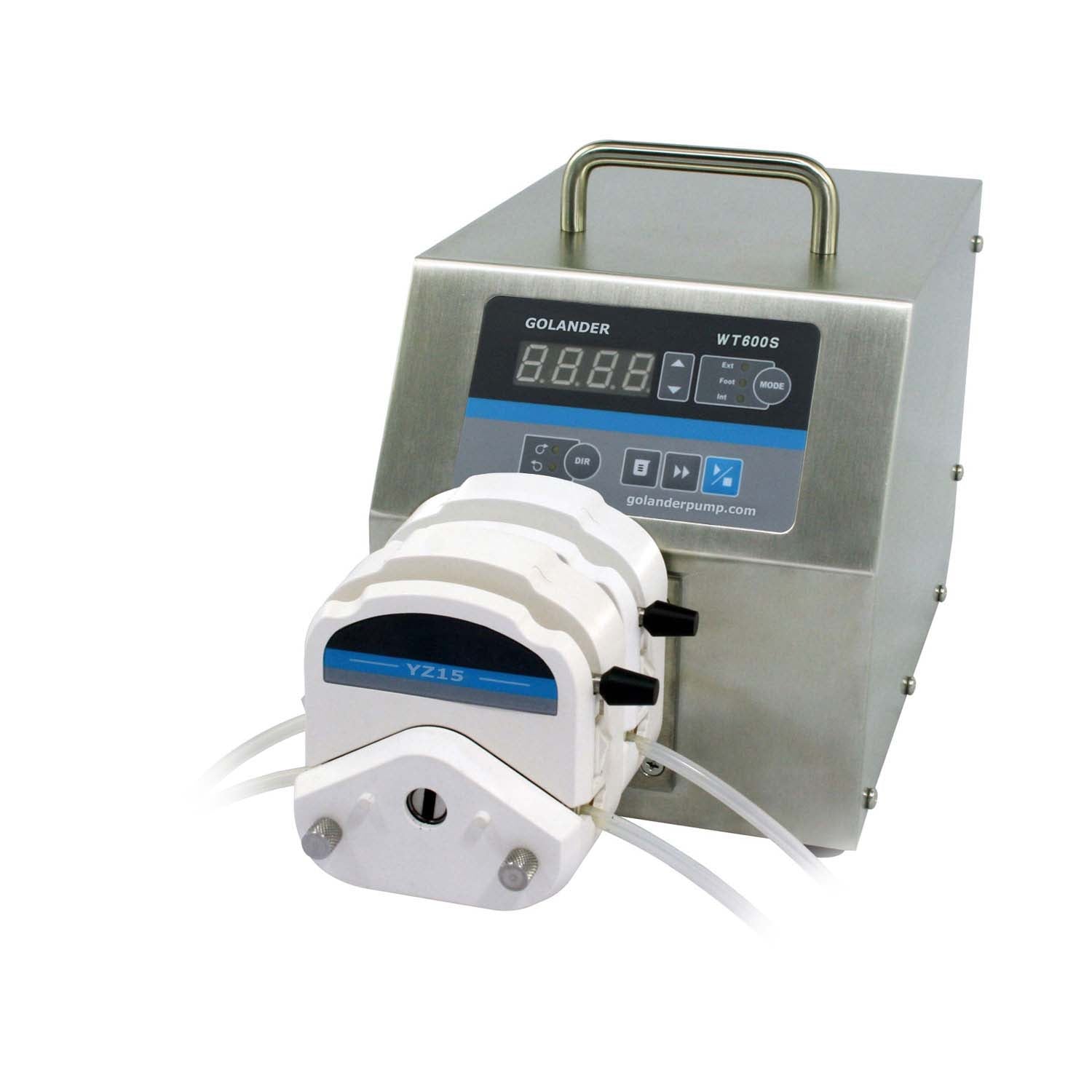

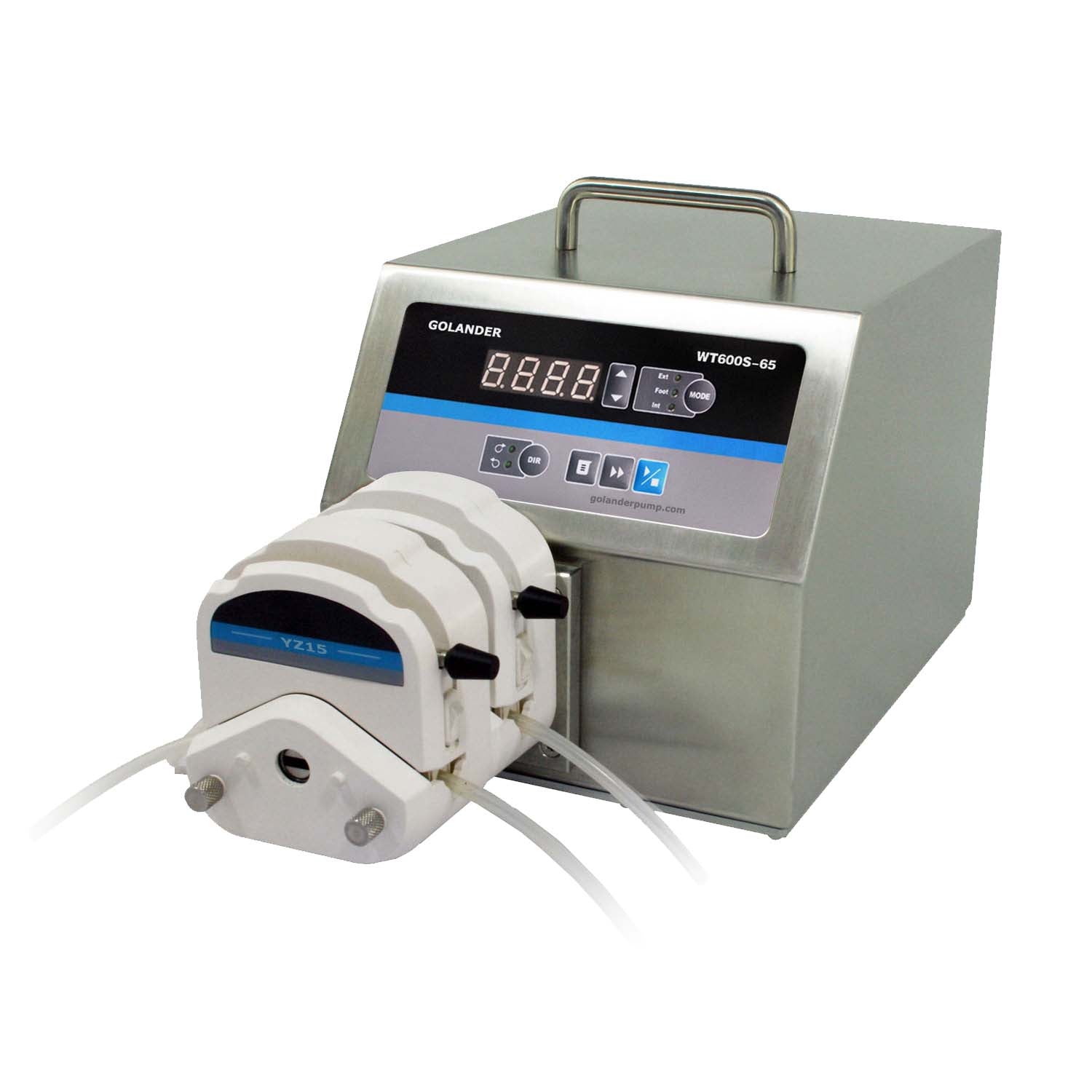

| WT600S | YZ15 (1 channel) 2xYZ15 (2 channels) 4xYZ15 (4 channels) |
13# 14# 16# 19# 25# 17# 18# | 0.005-2562 |

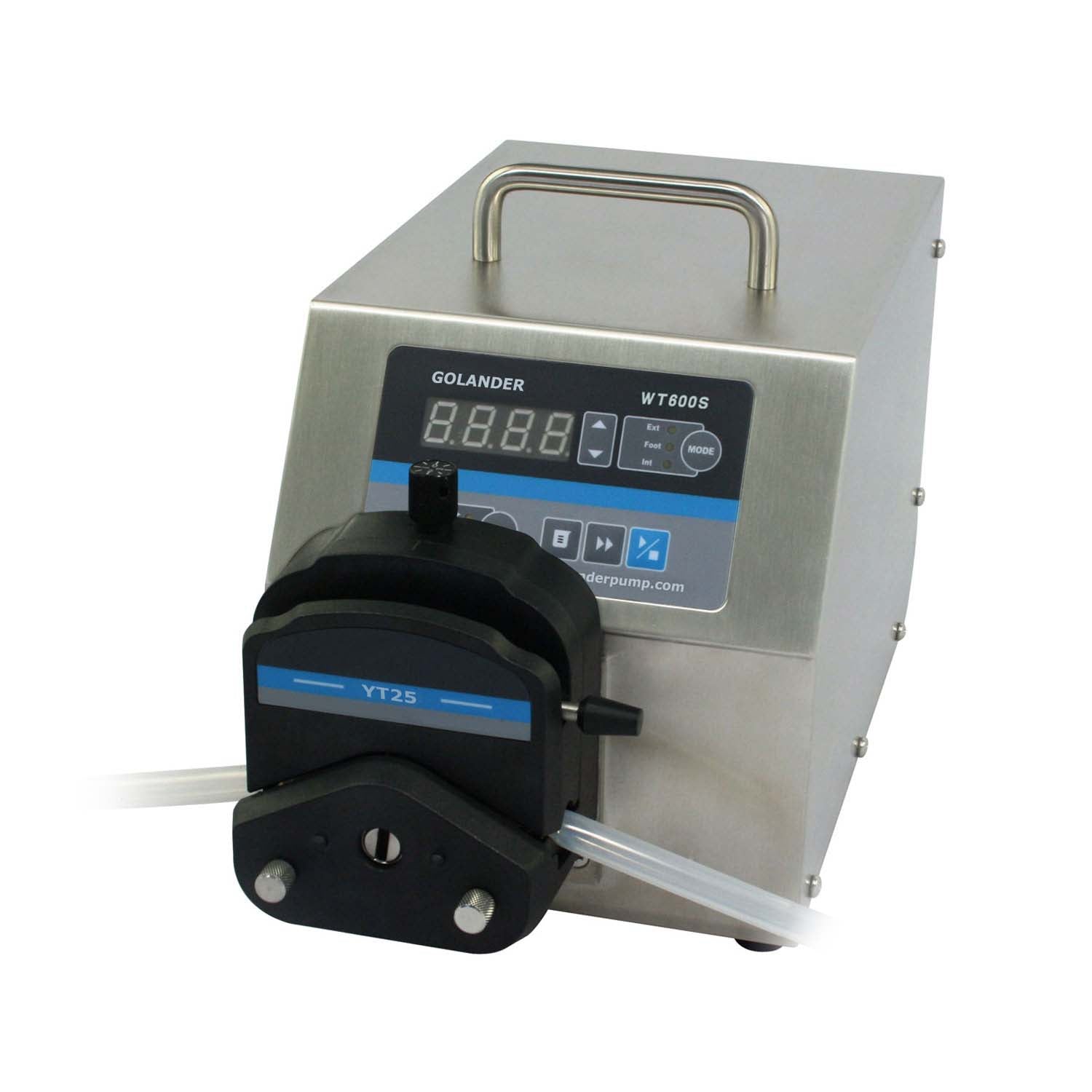

| YT25 (1 channel) 2xYT25 (2 channels) 4xYT25 (4 channels) |
15# 24# 35# 36# | 0.024-3000 | |

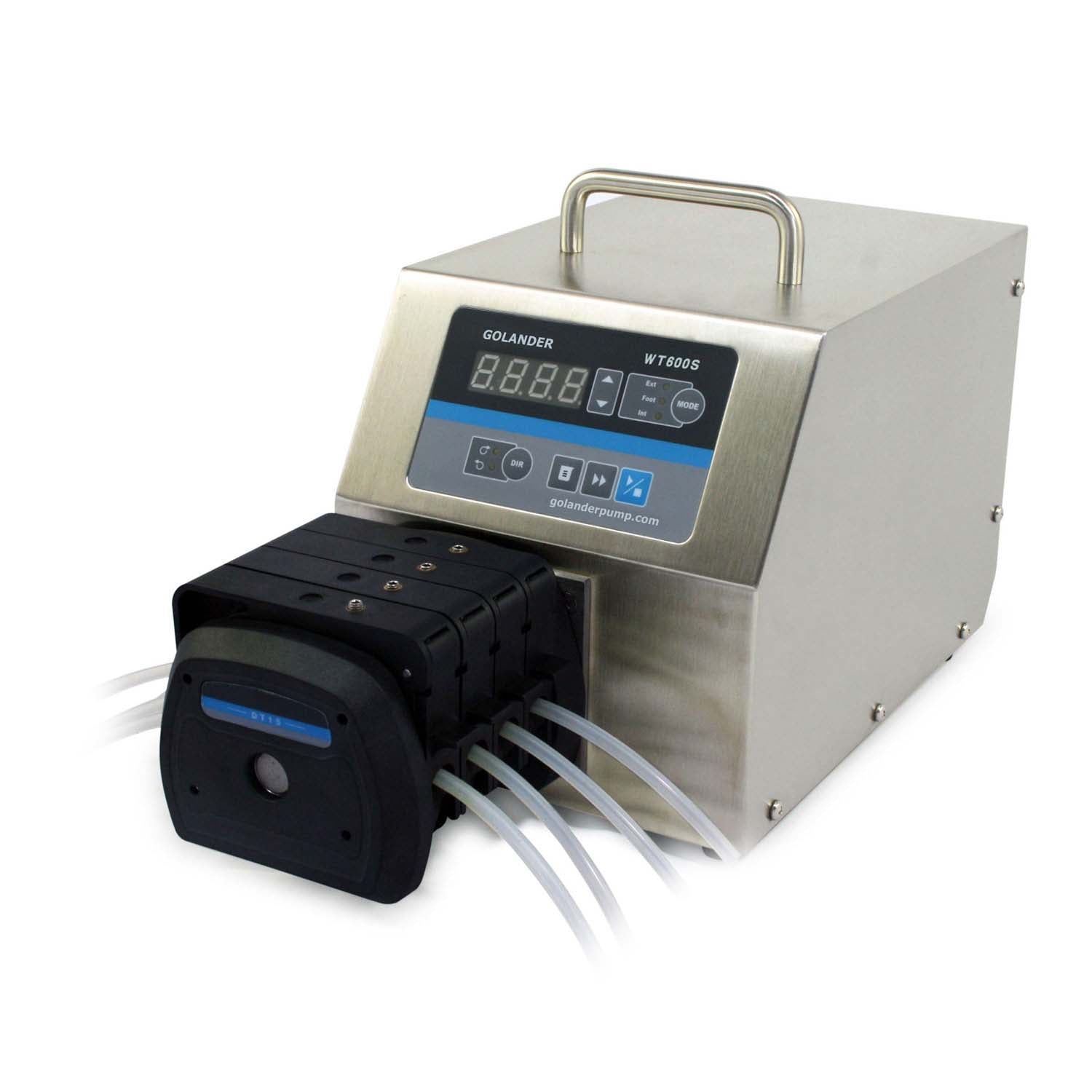

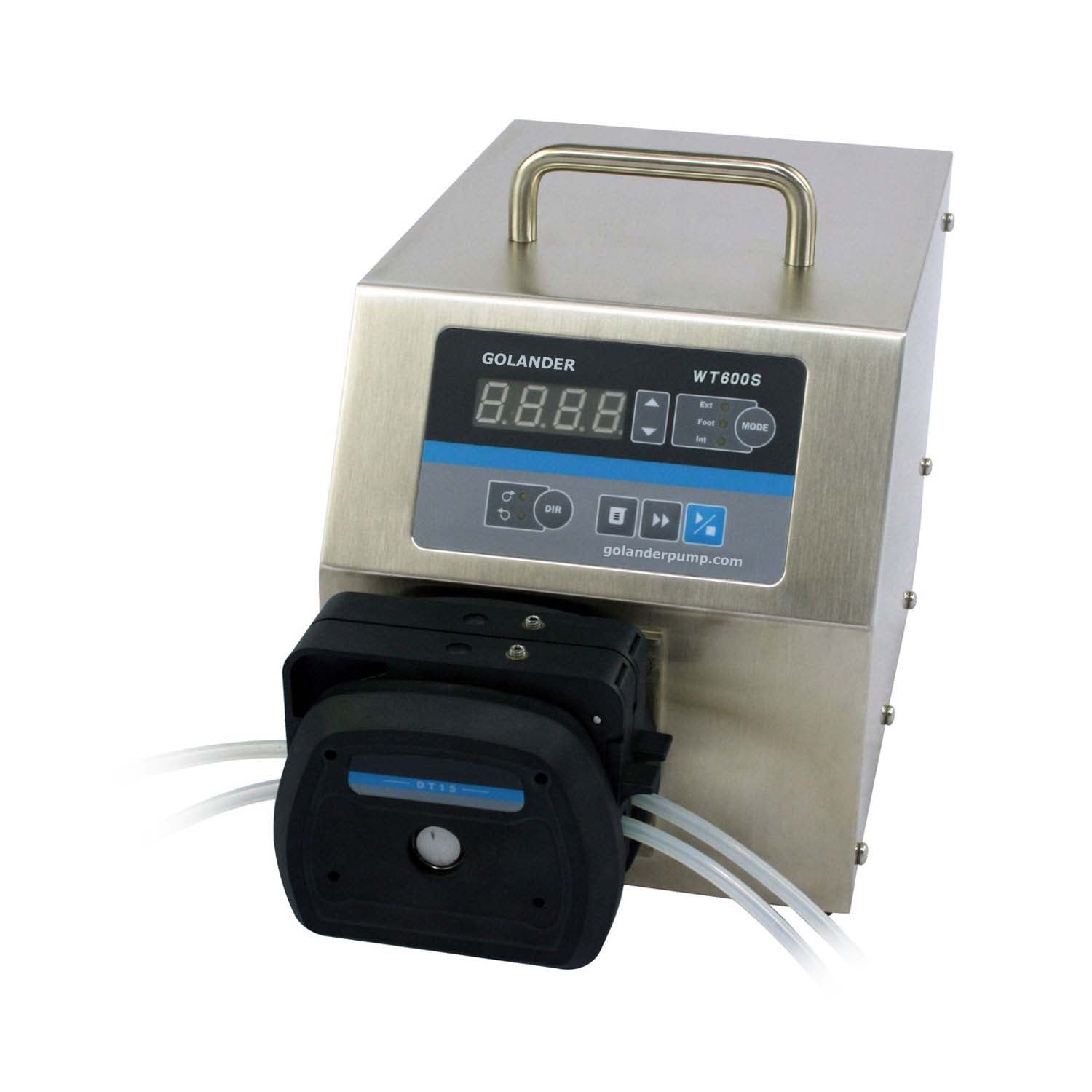

| DT15-24 (2 channels) DT15-44 (4 channels) |
16# 19# 25# 17# | 0.067-2240 | |
| KZ25 (1 channel) 2xKZ25 (2 channels) |
15# 24# 35# 36# | 0.31-6600 | |

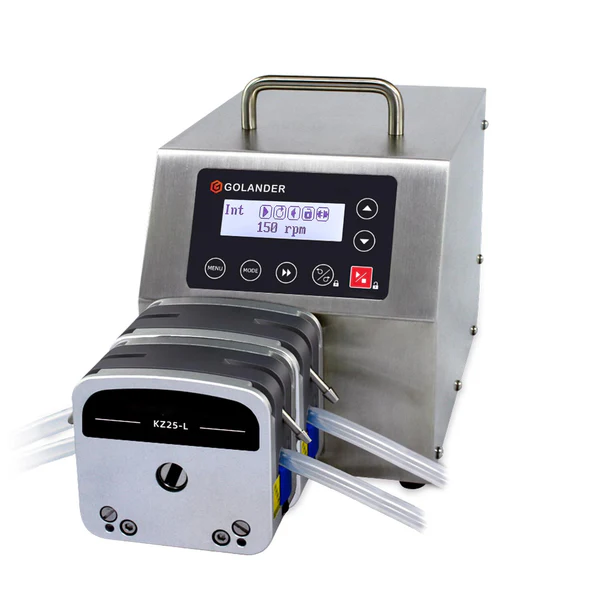

| KZ25-L | 15# 24# 35# 36# | 0.31-6601 |
*The above flow rate data is obtained from tests with pure water at room temperature and pressure and is for reference only. Actual flow rates may vary due to pressure, media characteristics, and other relevant factors.
